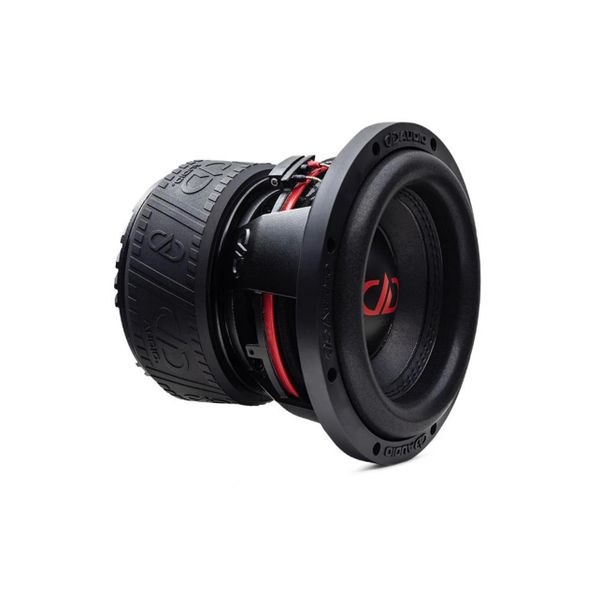

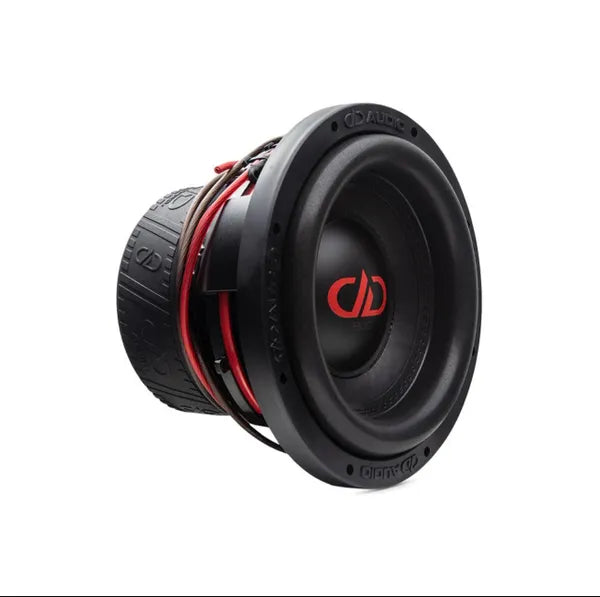

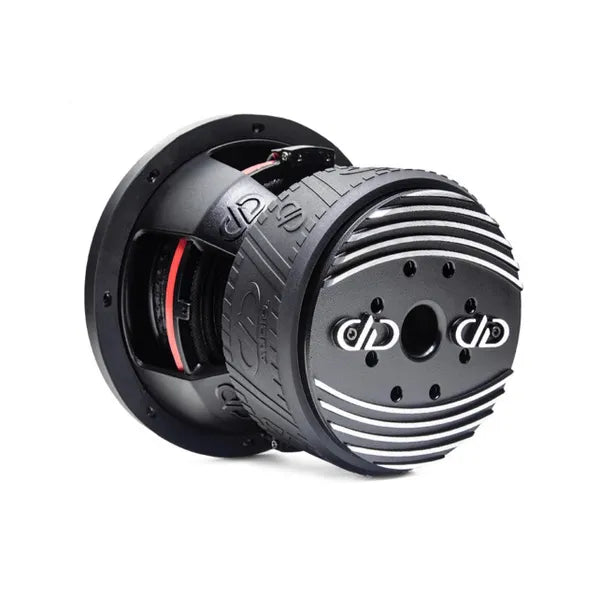

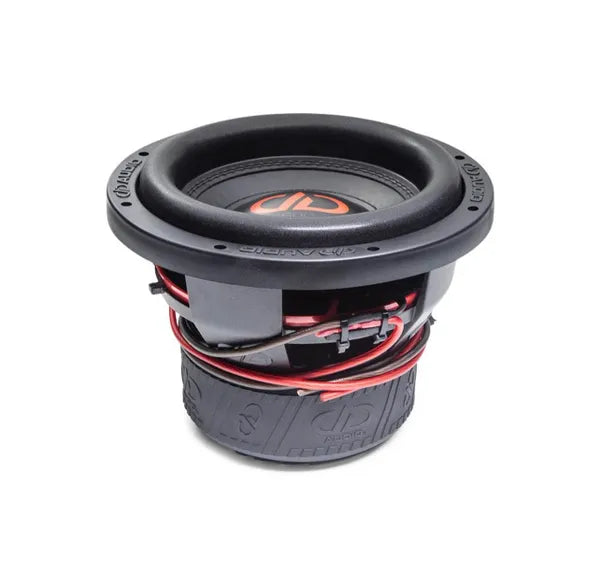

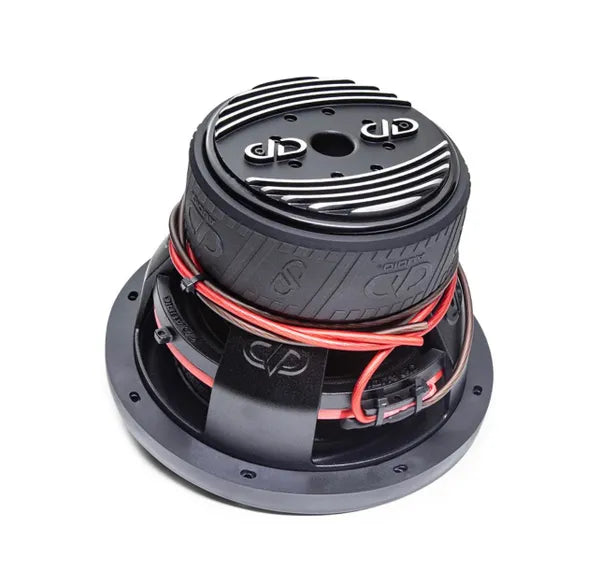

DD AUDIO 600 SERIES SUBWOOFER

DD AUDIO 600 SERIES SUBWOOFER

Regular price $189.00 USD
Regular price Sale price $189.00 USD
Sale Sold out
Shipping calculated at checkout.
MODEL


606D 608F 610E 610F 612E 612F 615E
Speaker Size (In): 6.5 8 10 10 12 12 15
Speaker Size (MM): N/A N/A 254 N/A 304.8 N/A 381
Watts RMS: 250 - 500 1000 500 - 800 1000 500 - 800 1000 500 - 800
Watts Peak: 1500 3000 2400 3000 2400 3000 2400
Impedance: D2 / D4 D2 / D4 D2 / D4 D2 / D4 D2 / D4 D2 / D4 D2 / D4
VCD (In): 2 2.5 2.5 2.5 2.5 2.5 2.5
Piston Diameter (In): 5.375 6.5 8.125 8.5 10.125 10.25 13
Fs (Hz): 43.74 38 32.3 34 32.3 31 33.6
Qms: 4.907 7.76 4.558 5.047 4.646 5.06 4.327
Qes: 0.558 0.5 0.434 0.454 0.472 0.4432 0.524
Qts: 0.501 0.46 0.396 0.416 0.428 0.4075 0.468
Vas (Liters): 4.395 7.4 18.59 33.91 40.22 81.16 82.36
Xmech (In): N/A N/A 2.6 N/A 2.6 N/A 2.6
Xmech (MM): 56 60 N/A 60 N/A 60 N/A
Xmax (MM): 9 18 15 22 15 22 15
Frame OD (In): 7 8.3 10.625 10.625 12.875 12.875 15.25
Frame OD w/ Gasket (In): 7 1/8 8.5 10.75 10.75 13 13 15.5
Mounting Diameter (In): 6 7.37 9.39 9.39 11.5 11.5 13.81
Mounting Depth (In): 4 1/2 6.5 6.625 7.25 6.75 7.375 7.8
Motor Diameter (In): 5 1/2 6.5 7 7 7 7 7
Motor Depth (In): 2 3.25 3 3.375 3 3.375 3
Magnet Weight (Oz): N/A N/A 170 N/A 170 N/A 170
Woofer Displacement (CuFt): 0.04 0.07 0.08 0.08 0.09 0.1 0.11
Sealed Enclosure (CuFt): 0.25 - 0.5 0.4 - 0.8 N/A N/A N/A N/A N/A
Ported Enclosure (CuFt): 0.25 - 0.75 0.75 - 1.25 1.25 - 1.5 1.25 - 1.75 1.75 - 2.75 1.75 - 2.75 3.0 - 6.0
Shipping Weight (Lbs): 10.5 20 23 N/A 28 N/A 30
Price (USD): 189 each 299 each 279 each 329 each 299 each 349 each 349 each
  • The 600 Series offers a wide range of DD AUDIO’s most popular Power Tuned Subwoofers designed for remarkable power handling, to be a serious bassheads daily driver.

    Precision engineered, thermal cooling enhancements, from the proven Free Flow Cooling System on all models to the cutting edge aluminum heat sinks on the new “f” revision, let you play longer, while the tall surrounds, high-temp voice coils, and high excursion spiders let you play harder.

    All of them incorporate the very best component parts and the newest models feature the latest in state of the art design to ensure maximum efficiency for a power range that serves the daily driver, but borders on competition grade performance. They are not for the faint of bass.

    Features

      • Free Flow Cooling System
      • High-temp Voice Coil
      • Triple Layer Spider System
      • Unique glass fiber and natural pulp cone
      • Extended pole piece

      • Cast aluminum basket
