DD AUDIO continues to redefine the venerable M Series with revisions that greatly improve power and efficiency without increasing unit size. The M5000 incorporates the finest in ultra-high current devices and optimizes their usage with intelligent configuration to successfully maintain the modest footprint of its predecessor.

Using design features borrowed from the award winning Z12000, the new M Series expands its operating voltage with improvements to the power supply, output section, and high efficiency heat sink, giving it a 16v max operation that takes full advantage of today’s lithium batteries. These enhancements allow the best power to footprint ratio to date!

To further enhance performance, the M Series features new end panels, raising the amps off the mounting surface, allowing the internal fan to pull more air through the PCB even on carpeted or padded surfaces.

These high current half bridge amps are more compact, lighter and pack more punch than any previous M Series.

COMING SOON! We will have an aftermarket app controlled LED vanity plate upgrade available for all M Series models. The vanity plates will be manufactured and shipped from our US factory.

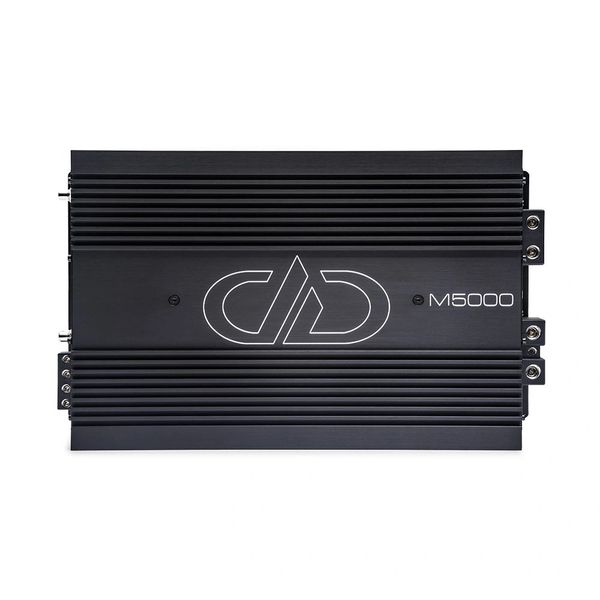

M5000: 5000 Watt – Compact Monoblock Amplifier

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 1
Continuous Wattage @4ohm: 1900
Continuous Wattage @2ohm: 3000
Continuous Wattage @1ohm: 5000
Dynamic Wattage: 7000
Max Current Draw (Amps): 700
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: > 97
Damping Factor: > 400
Frequency Response (Hz): 20 - 500
Sub-Sonic Filter: 20 - 250Hz
Low-Pass Filter: 50 - 500Hz
ZVL Input: Yes
Pass Thru Output: No
Remote Control: Remote Included in Box
Power Wire Gauge: 2 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 13.4 x 9 x 2.6
Dimensions (MM): 340 x 230 x 66
Price (USD): 1169 each


  • Optimized Über High Current Power Supply
  • Strappable Half Bridge Design
  • ZVL Linking Module Input
  • 24dB/Oct Bandpass Filters
  • Custom Vanity Plate Ready
  • Remote / LCD Voltage Display and Clipping Indicator
  • 5000 Watts RMS Continuous Power
